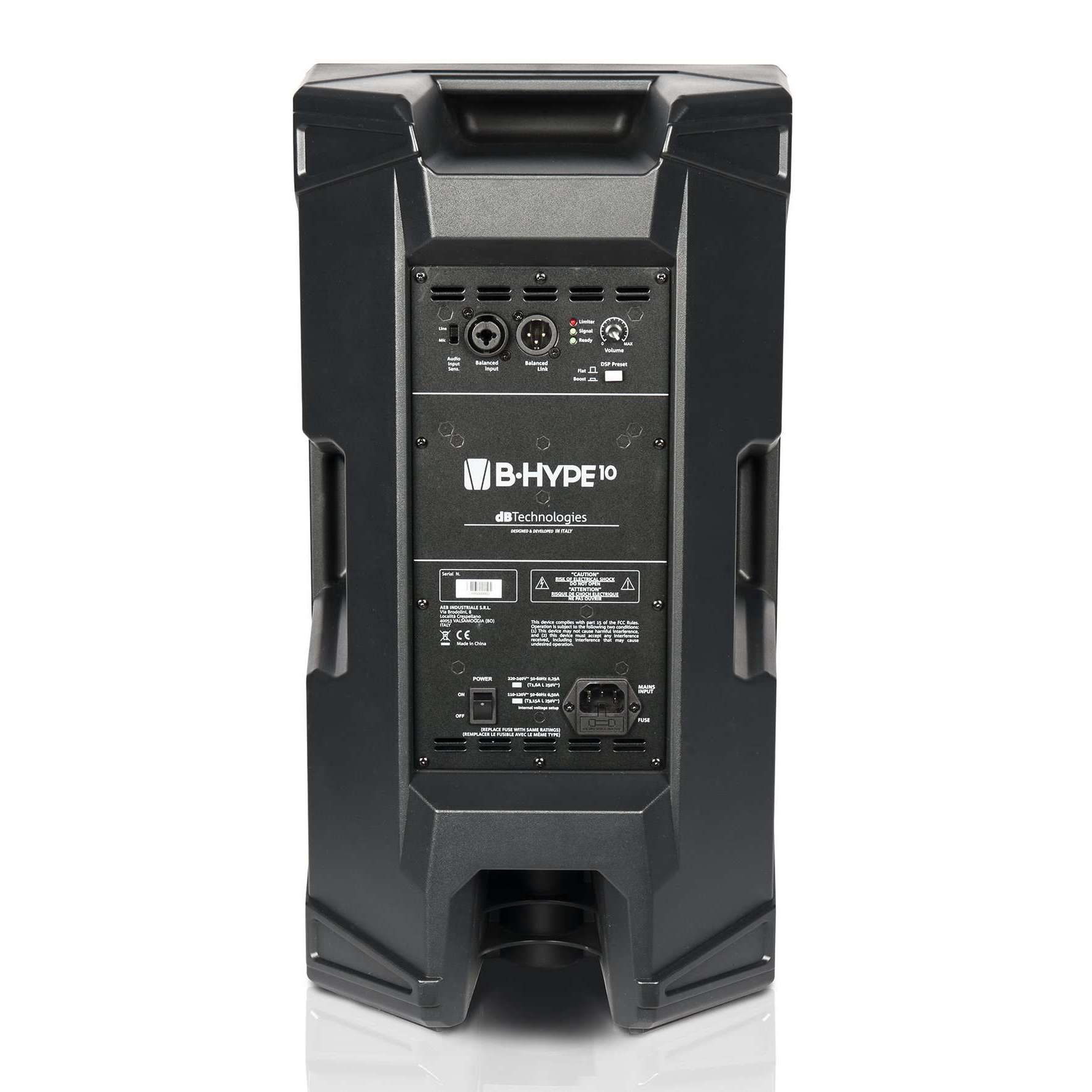

Db Technologies BH10 Powered 10" 260W Speaker - Image 2

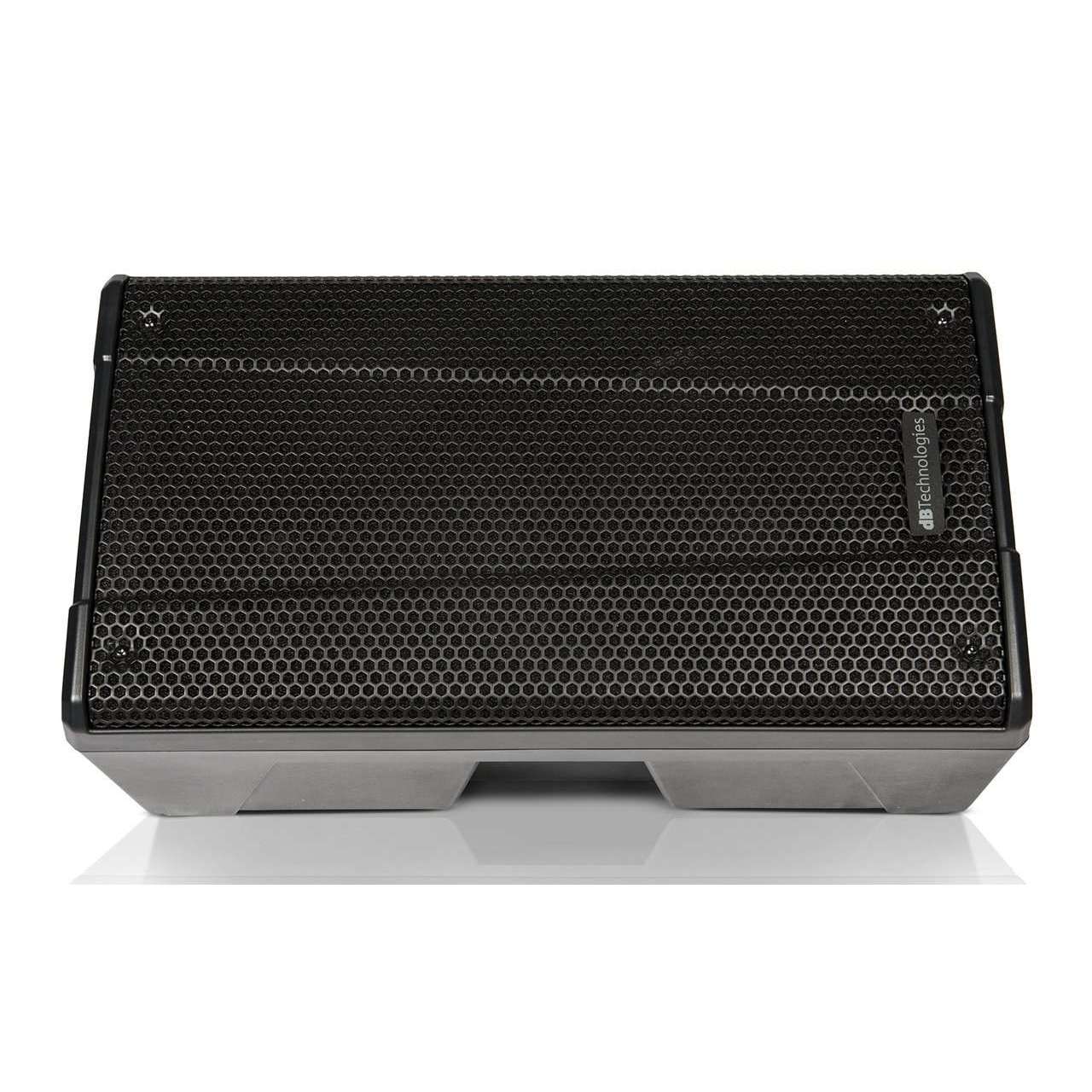

Db Technologies BH10 Powered 10" 260W Speaker - Image 3

Home
/
Shop
/
Speakers

Db Technologies BH10 Powered 10″ 260W Speaker

2-Way Active Speaker BH series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15″ cabinet), while delivering the most accurate sound reproduction.the new B-HYPE 10 is a versatile active speaker. It is equipped with one 1″ compression driver (1″ voice coil), and one 10″ woofer (1.5″ voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.the featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1 x side and 1 on top-) and multi-functionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dB Technologies Subs.

We ship Australia wide!

Ongoing equipment support

Request the best price now!

SKU: DBBH10

Category: Speakers

Tags: Powered Speakers

Brands: DB

Attributes	Value
Weight	10 kg
Dimensions	60 × 40 × 40 cm

Specifications

Pole Mount: 36 mm
Width: 295 mm (11.61 in)
Height: 544 mm (21.42 in)
Depth: 283 mm (11.14 in)
Weight: 9 kg (19.84 lbs)
Angles Up: Double wedge angle 45ø

Description

Technical Data

Speaker Type: 2-Way Active Speaker
Acoustical data

Usable Bandwidth [-10dB]: 55 – 20.000 Hz
Frequency Response [-6 dB]: 62 – 19.600 Hz
Max SPL: 121 dB
Type HF: Compression Driver
HF voice coil: 1 ”
LF: 10 ”
LF voice coil: 1.5 ”
Crossover Frequency: 2300 Hz (24 dB/oct.)
Horizontal Dispersion: asymmetrical 85ø up / 120ødown
Vertical Dispersion: 85ø (+25/ -60ø)
Amplifier

Amp Technology: Custom Made
Amp Class: Class D – Passive cooling (convection)
Power Peak: 260 W
Processor

Controller: DSP 28/56 bit- 48 kHz
Limiter: Peak, RMS, Thermal
Controls: Volume, Audio Input Sensitivity, DSP Preset
Input

Main Connection: VDE
Signal Input: Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out: (Balanced) 1xXLR OUT (LINK)
Mechanics

Housing: Polypropylene
Grille: Full Metal Grille
Handles: 3 (2 on side 1 on top)

Dimensions

Depth (in) – 11.8
Depth (mm) – 299.0
Height (in) – 24.4
Height (mm) – 618.4
Weight (kg) – 12.4
Weight (lbs) – 27.3
Width (in) – 15.8
Width (mm) – 400.0

Warranty

At Capital Karaoke, we stand by the quality of the products we sell. Warranty coverage varies by manufacturer, with some offering extended protection on their equipment. If you have any questions about your product’s warranty or need support, our team is here to help. Contact us, and we’ll guide you through the process to get your issue resolved quickly
