Bluetooth Streaming
With Bluetooth connectivity, EON208P lets you stream audio from your mobile device. Now you can DJ a party right from the dance floor, or play pre-recorded material for your meeting, worship event, or health club—all without the hassle of wires.

Portable Design

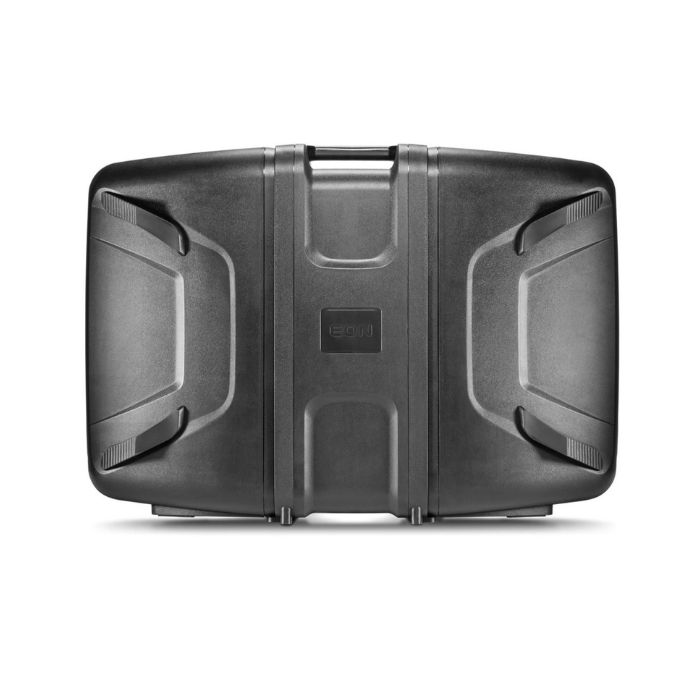

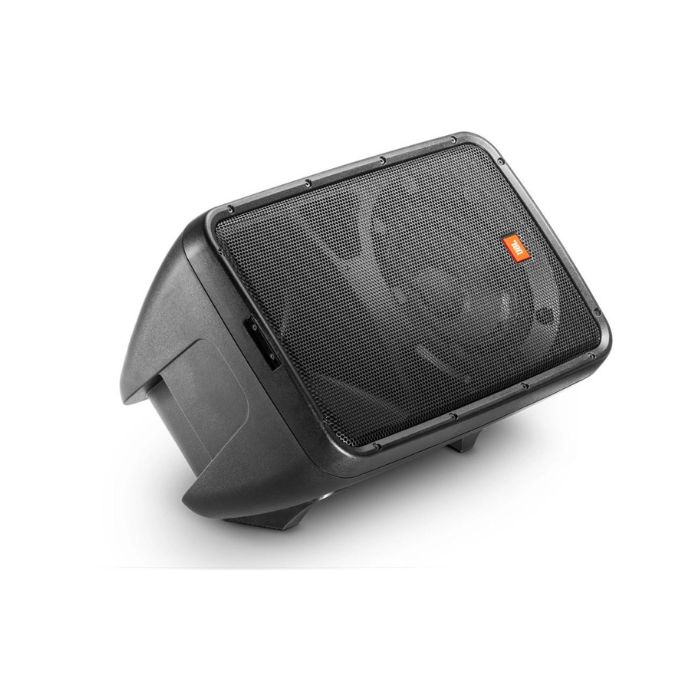

EON208P puts professional audio within arm’s reach—literally. The twin 8” speakers and 8-channel mixer clip together to form the most comprehensive, lightweight and portable PA in its class. Carry it in one hand with a guitar slung over your shoulder to play coffee shops and medium-size gigs. Or turn a backyard into the hottest nightclub around. With uncompromising JBL sound quality and effortless portability, you’ll want to take it everywhere. The versatile enclosures facilitate stacking, pole mounting and use in monitor position.

System Type Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output 121 dB peak
Frequency Range (-10dB) 60 Hz – 20 kHz
Frequency Response (±3 dB) 70 Hz – 18 kHz
AC Input 100-120 V, 220-240 V 50/60 Hz
Amp Design Class D
System Power Rating 300 W (2x 150 W stereo)
Outputs Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4″” balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4″” balanced TRS jack

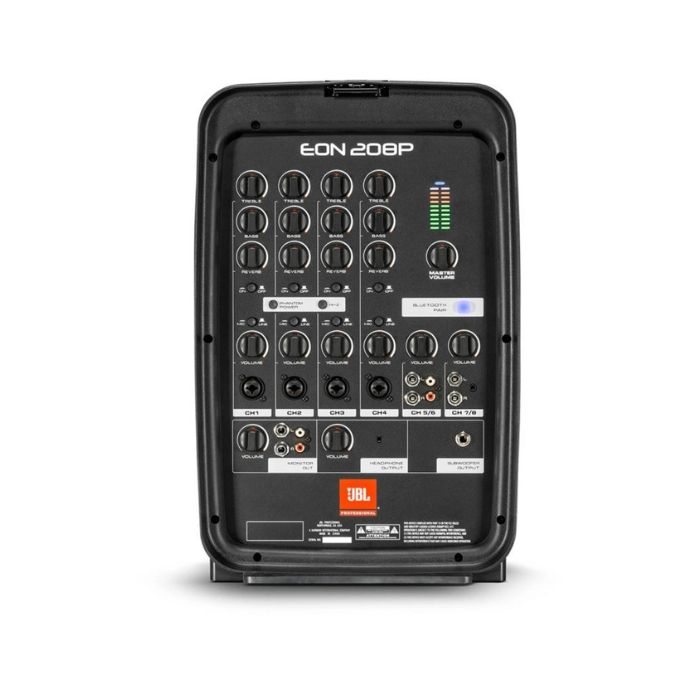

Channels 1-4: XLR/1/4″ jack combo connectors 5-6: one pair of 1/4″ balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4″ balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input
Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4″ balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4″ balanced TRS jack

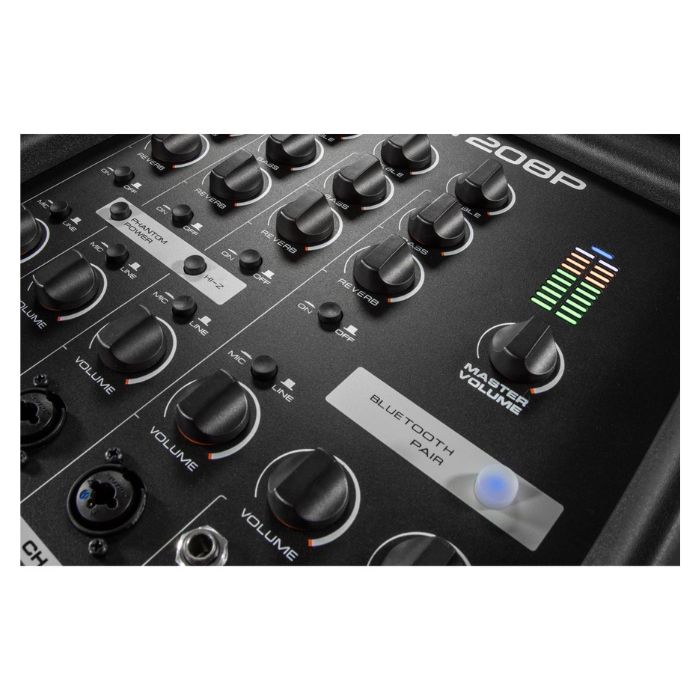

Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter On-board DSP limiting
LF Driver 1x JBL 8″ (203mm) woofer
HF Driver 1x 1″ Neodymuim black aluminum dome tweeter
Coverage Pattern 100° horizontal x 60° vertical
Crossover Frequency 2 kHz
Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure Polypropylene
Suspension/Mounting 36 mm pole socket
Handles One on top
Speaker Grille Powder-coated perforated steel
Dimensions (H x W x D) 575mm x 775mm x 400mm (22.6in x 30.5in x 15.7in)
Net Weight 38.8 lbs (17.6 kg)
Mic Inputs 4
EQ Treble, Bass
Effects Reverb
Inputs 1-4: XLR/1/4″” jack combo connectors 5-6: one pair of 1/4″” balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4″” balanced TRS jacks (stereo), and a 3.5mm stereo jack

Download user manual here
