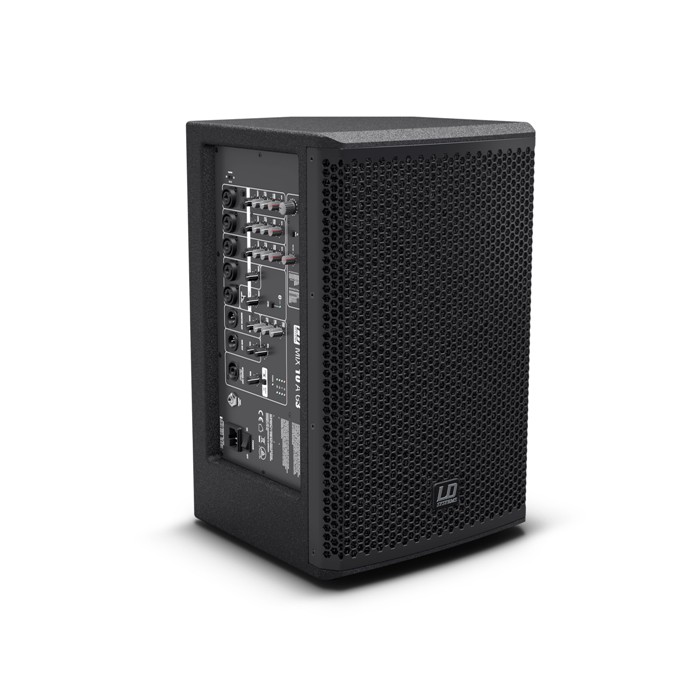

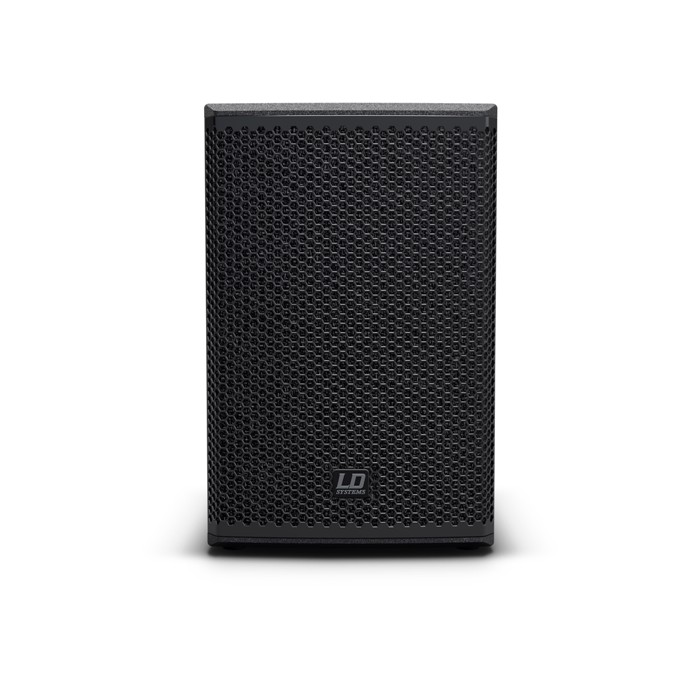

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer

Sale!

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer - Image 2

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer - Image 3

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer - Image 4

Home
/
Shop
/
Speakers

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer

2 x 200 watts RMS class D amplification
10” custom woofer and 1” Celestion HF driver
Integrated 7-channel mixer
DSP with 16 FX Presets
Bluetooth® audio streaming
Standalone mono or stereo applications with LD MIX 10 G3
Subwoofer and monitor outputs
Rigid plywood enclosure
Dual-Tilt pole mount for 0° or 5° orientation

We ship Australia wide!

Ongoing equipment support

Request the best price now!

SKU: LDMIX10

Category: Speakers

Tags: Powered Speakers

Brands: LD Systems

LD Systems LDMIX102AG3 2 Way Speaker with 7 Channel Mixer is an ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10″ custom woofer and 1″ Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.

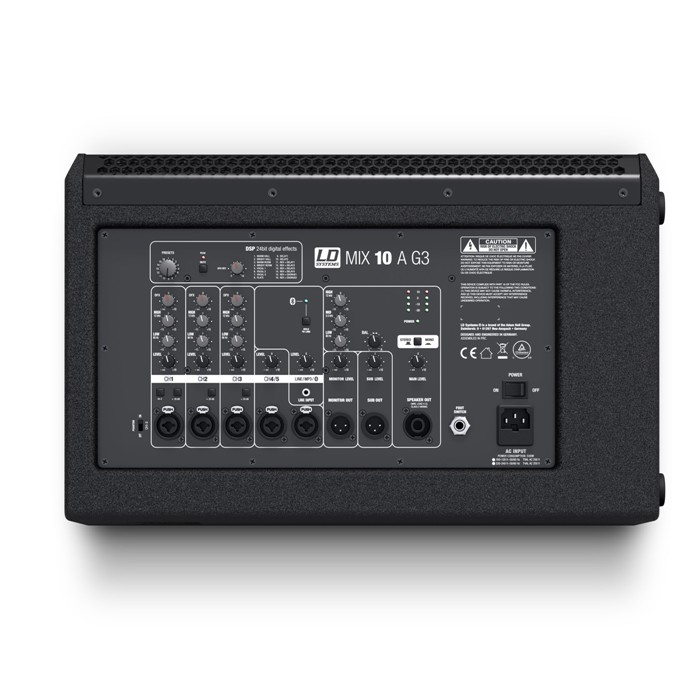

Accommodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

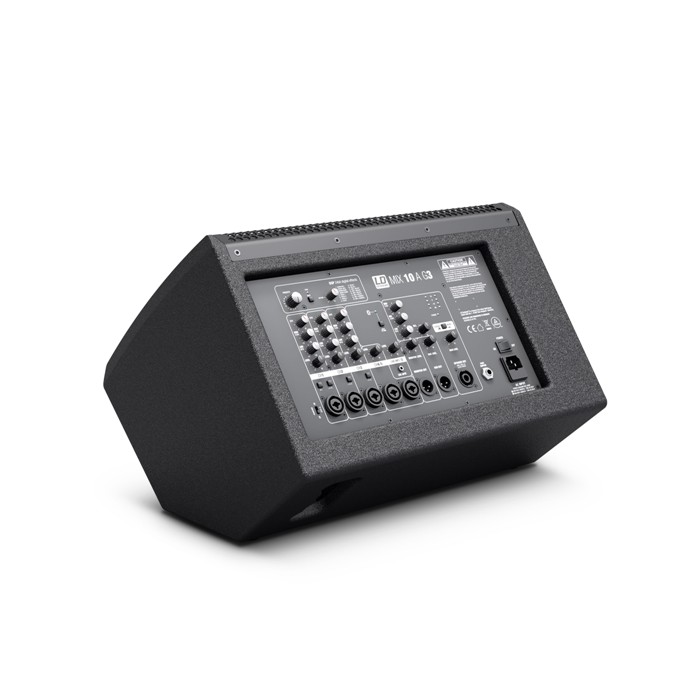

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Attributes	Value
Weight	11 kg
Dimensions	60 × 45 × 45 cm

Specifications

PA loudspeaker

Type: active
Woofer dimensions: 10 “
Woofer size: 254 mm
Woofer brand: Custom-made
Tweeter Dimensions: 1 “
Tweeter dimensions (mm): 25.4 mm
Tweeter brand: Celestion
Dispersion (H x V): 80 x 70 °
Frequency response: 65 – 20.000 Hz
Amplifier: Class D
Amplifier output (RMS): 2 x 200 W
Amplifier output (peak): 2 x 400 W
Max. SPL: 124 dB
Protection circuits:limiter
over-current
overload
short circuit
thermal overload
Mixer

Channels: 7
Mic inputs: 3
Mic inputs:6.3 mm jack
XLR
Controls for Mic Inputs:+ 20 db switchable
DFX Send
EQ Hi
EQ Low
Hi-Z Switch (channel 1 only)
Level
Line inputs: 2
Line input connectors: 2 x XLR , 3.5mm TRS
Controls Line Inputs: level
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Input Impedance Hi-Z Input Connectors: 1000 kOhm
Monitor Line Outputs: 2
Connector Type Monitor Line Output: XLR
Controls for Monitor Line Output: Monitor Volume , Sub level
Max Output Level Line Output Monitor: 17 dBu
Record Outputs: 1
Increased power main output (at 4 ohm): 200 W
DSP Digital Effects Unit

DSP Number of Programs: 16
DSP Controls:DFX Return
ootswitch
Mute switch
Presets
DSP Display Elements: Peak LED
Main section

Controls:Balance
EQ Hi
EQ Low
EQ Mid
Master Volume
Mono/stereo
Phantom Power
Power On/Off
Switch operating voltage
Main section indicators: 4-segment Level Meter , power LED
Phantom power: 48 V
Mains connector: IEC socket
Operating voltage: SMPS
Operating voltage: 110 – 120 V ~ 50/60 Hz or 220 – 240 V ~ 50/60 Hz, automatic switching
Power consumption: 500 W
Cabinet

Cabinet construction: vented
Cabinet material: 16 mm Plywood
Cabinet surface: texture paint
Cabinet colour: Black
Width: 315 mm
Height: 489 mm
Depth: 307 mm
Weight: 12,3 kg
Other features

Bluetooth
dual-tilt flange (0°/5°)

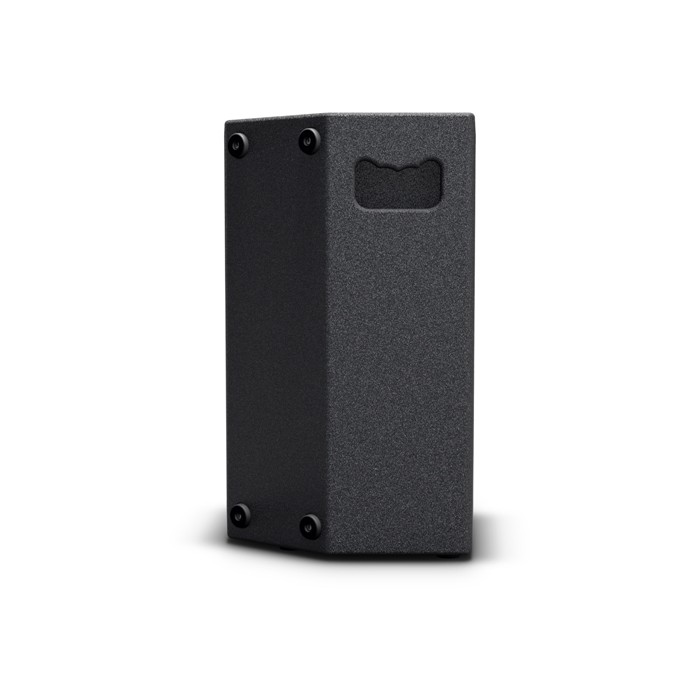

Ergonomic handle

Description

2 x 200 watts RMS class D amplification
10” custom woofer and 1” Celestion HF driver
Integrated 7-channel mixer
DSP with 16 FX Presets
Bluetooth® audio streaming
Standalone mono or stereo applications with LD MIX 10 G3
Subwoofer and monitor outputs
Rigid plywood enclosure
Dual-Tilt pole mount for 0° or 5° orientation

Dimensions

Width: 315 mm
Height: 489 mm
Depth: 307 mm
Weight: 12,3 kg
